Perspective control, tilt-shift lens affords +/- 12mm of shift and +/- 10° of tilt, and both types of movements can be applied independently, and parallel or perpendicular to one another. Additionally, the tilt and shift functions can be rotated +/- 90° in any direction for applying the movements in distinct directions.

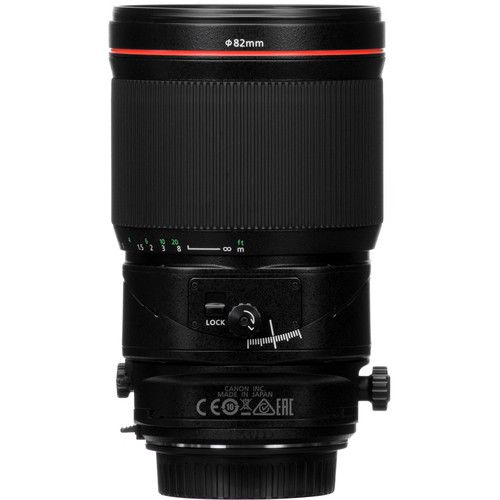

Tilt-locking mechanism and a large tilt knob benefit operation and ensure the lens stays in place while shooting.
Two Ultra-Low Dispersion (UD) elements help to reduce color fringing and chromatic aberrations for improved clarity and color accuracy.
A Subwavelength Coating has been applied to lens elements to minimize surface and internal reflections for a marked reduction in lens flare and ghosting when working in strong lighting conditions.
A minimum focusing distance of 1.6' along with a maximum magnification of 0.5x benefits working with close-up subjects.
Rounded nine-blade diaphragm contributes to a pleasing out of focus quality that benefits the use of shallow depth of field techniques.
Angle of View
+/- 10° Tilt
+/- 12 mm Shift
Macro Reproduction Ratio
Minimum Focus Distance
1.61' / 49 cm
11 Elements in 7 Groups
82 mm (Front)
Dimensions (ø x L)
3.48 x 5.48" / 88.5 x 139.1 mm
2.4 lb / 1.1 kg
Box Dimensions (LxWxH)
10.8 x 6.05 x 5.95"

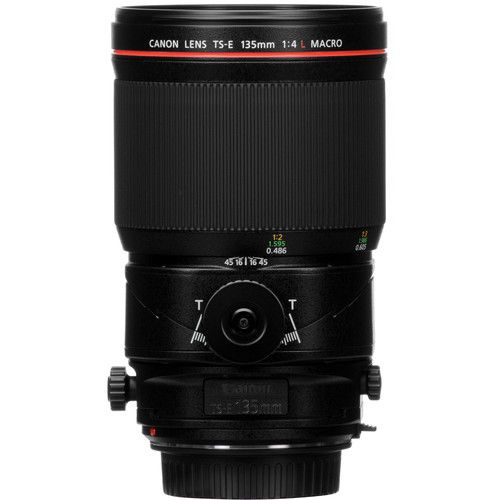

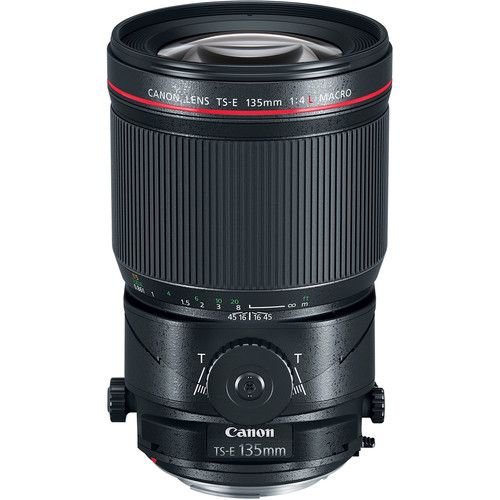

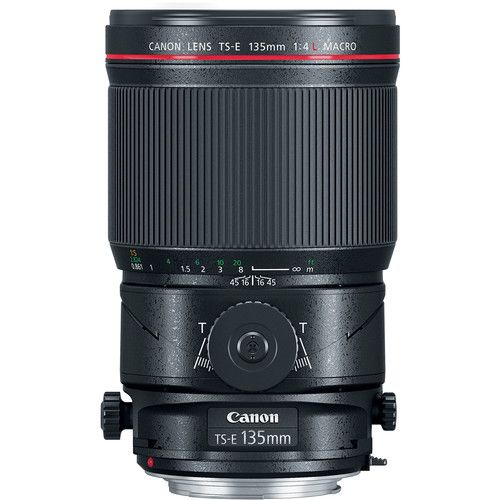

• Canon TS-E 135mm f/4L Macro Tilt-Shift Lens • Canon E-82 II 82mm Lens Cap • Canon Lens Dust Cap E (Rear Lens Cap) • Canon ET-88 Lens Hood • Canon LP1424 Lens Case for Canon EF 70-300mm f/4-5.6L IS USM Telephoto Lens
