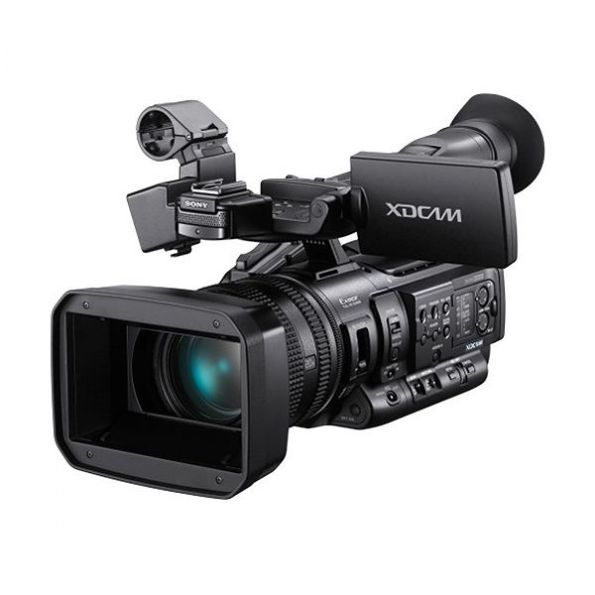

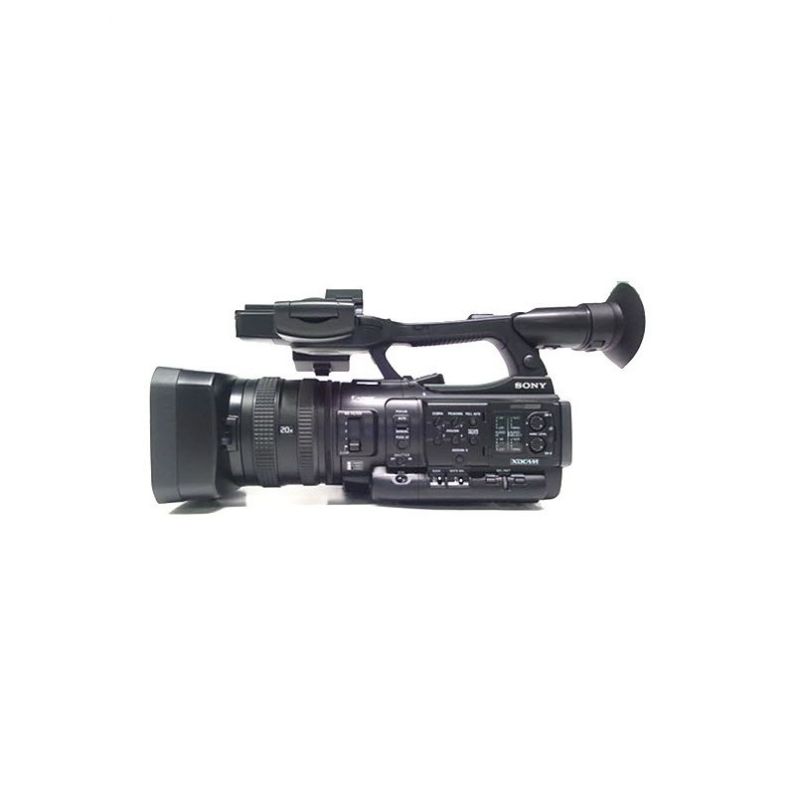

Sony PMW-160 XDCAM HD422 Handheld Camcorder
Item: 22216
Availability: In Stock
Shipping Info: Ships in 1-2 Business Days
Condition: New
Protection Plans:
Total Savings: $590.00
Need Help? Call Us: 855-715-6766
-
Extended Warranty Protection Plans
Batteries & Chargers
Filters & Filter Kits
Memory & Digital Media
Precision Lenses
Bags & Cases
Flashes, Lights & Lighting Kits
Microphones & Light Meters
Tripods & Monopods
Lens Cleaning & Care
Screen Protectors & Cleaning Kits
-
TheSony PMW-160 XDCAM HD422 Camcorderfeatures three 1/3" Exmor CMOS sensors and a 20x power zoom lens. PMW-160 utilizes the XDCAM HD422 format at 50Mbps. The articulated LCD monitor and EVF each feature 480 vertical lines of resolution. The camera also supports Wi-Fi remote operation via a mobile App and the optional CBK-WA01 Wi-Fi Adapter(sold separately).
Key Features
- Three 1/3" sized Full HD Exmor CMOS Sensors
- Sony Power Zoom Lens with 20x Zoom Ratio
- Supports XDCAM HD422 Format at 50Mbps
- Articulated LCD and EVF with 480 Resolution
- DVCAM for SD Recording and Playback
- Play and Record UDF and FAT Cards
- Built-in ND Filters (1/4, 1/16, 1/64)
- Signal-to-Noise Ratio 54 dB
- Two SxS Memory Card Slots
- Wi-Fi Remote Capability with mobile App and CBK-WA01(sold separately)
- Lens Hood with Shutter Mechanism
-
Imaging Device 3 x 1/3" Exmor CMOS Signal to Noise Ratio 54 dB Zoom Ratio 20x 35mm Equivalent Focal Length 29.5 - 590mm ND Filters OFF, 1/4, 1/16, 1/64 Gain Selection -3, 0, 3, 6, 9, 12, 18 dB Sensitivity F9 (typical) at 2000 lx, 89.9% reflectance Slow Shutter 2, 3, 4, 5, 6, 7, 8, 16, 32, and 64-frame accumulation File Format UDF, FAT Video Recording Format UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
CBR, 50 Mb/s
MPEG HD420 (1440x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s) - playback only
LP mode (VBR, maximum bit rate: 18 Mb/s) - playback only
UDF Mode (SD Recording)DVCAM (CBR, 25 Mb/s)
FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
HQ mode (VBR, maximum bit rate: 35 Mb/s)
SP mode (CBR, 25 Mb/s)
Fat Mode (SD Recording)
DVCAM (CBR, 25 Mb/s)Frame Rates XDCAM HD422 at 50Mbps:
1080/59.94i, 1080/29.29p, 1080/23.98p, 1080/50p, 1080/25p
720/59.94p, 720/29.97p, 720/23.98p, 720/50p, 720/25pAudio Recording UDF Mode (HD Recording)
MPEG HD422 (MPEG-2 422P@HL):
4 channels, 48KHz, 24-bit LPCM
MPEG HD420 (1440x1080, MPEG-2 MP@HL):
4 channels, 48KHz, 16-bit LPCM
UDF Mode (SD Recording)DVCAM: 4 ch/16 bits/48 kHz
FAT Mode (HD Recording)
MPEG HD420 (1920x1080, MPEG-2 MP@HL):
2 channels, 48KHz, 16-bit LPCM
FAT Mode (SD Recording)
DVCAM: 2 channels, 48 KHz, 16-bit LPCMRecording/Playback Time UDF Mode (HD Recording)
50 Mb/s MPEG HD422 (MPEG-2 422P@HL):
Approx. 120 min with SBS-64G1A (64 GB) memory card
Approx. 60 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 30 min with SBP-16 (16 GB) memory card
35 Mb/s VBR, HQ Mode MPEG HD420 (1440x1080, MPEG-2 MP@HL):
Approx. 180 min with SBS-64G1A (64 GB) memory card
Approx. 90 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 45 min with SBP-16 (16 GB) memory card
UDF Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory card
FAT Mode (HD Recording)
35 Mb/s VBR, HQ Mode - MPEG HD420 (MPEG-2 MP@HL):
Approx. 200 min with SBS-64G1A (64 GB) memory card
Approx. 100 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 50 min with SBP-16 (16 GB) memory card
25 Mb/s CBR, SP Mode - MPEG HD 420 (MPEG-2 MP@HL-14):
Approx. 280 min with SBS-64G1A (64 GB) memory card
Approx. 140 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 70 min with SBP-16 (16 GB) memory card
Fat Mode (SD Recording)
25 Mb/s DVCAM
Approx. 220 min with SBS-64G1A (64 GB) memory card
Approx. 110 min with SBP-32 / SBS-32G1A (32 GB) memory card
Approx. 55 min with SBP-16 (16 GB) memory cardRecording Media 2 x SxS Express 34 Cards Inputs 2 x XLR-type 3-pin (female): line, mic, mic +48 V selectable
1 x BNC (switchable to Video Out), 1.0 Vp-p, 75?
1 x BNC, Timecode In (switchable to TC Out), SMPTE-12M-2008, 0.5-1.8 Vp-p, 10k?)Outputs 1 x A/V out jack: 10 pin connector
1 x BNC, (switchable to Genlock In), HD-Y / Composite switchable, 1.0 Vp-p, 75?
1 x BNC, HD/SD switchable, SMPTE-292M/259M
1 x BNC, Timecode Out (switchable to TC In), SMPTE-12M-2008, 1.0 Vp-p, 10k?USB 2.0 1 x mini-B IEEE-1394 1 x 4-pin, HDV (HDV 1080i) / DV input/output, S400 Earphone 1 x Mini-jack (stereo) Built-in Speaker Monaural, 250 mW Viewfinder Electric Viewfinder (EVF)
Approx 1.2 million pixels
852 x 3 x 480 (HxRGBxV)LCD Monitor 3.5" (8.9 cm) color LCD
852 x 3 x 480 (HxRGBxV)
Aspect Ratio: 16:9Built-In Microphone Omni-directional stereo electret condenser Wi-Fi Yes Humidity 10 to 90% (relative humidity) Storage Temperature -4 to 140&def;F (-20 to 60F) Operating Temperature 32 to 104F (0 to 40C) Power Requirements 12 VDC Dimensions (WxHxD) 6.77 x 6.46 x 12.83" (17.2 x 16.4 x 32.6 cm) (without protrusions) -
• Brand New Factory Fresh Import Model
